Axicon 15000, 15500一維和二維條碼檢測儀
產品概述：

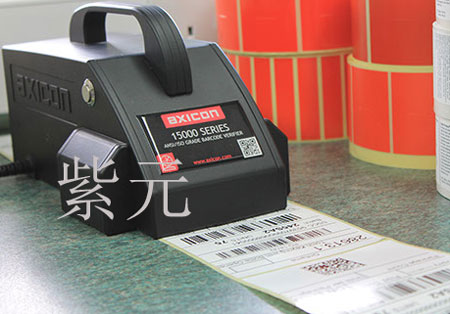

Axicon 15000 Series Linear & 2D Barcode Verifier
Maximum Field of View：
Model 15000 ： 50mm×30mm
Model 15500 ： 100mm×60mm

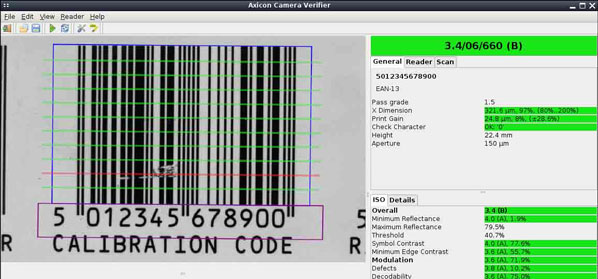

The Axicon 15000 barcode verifier is designed to read both linear and twodimensional matrix barcodes. It can verify linear barcodes with a maximum length of 51 mm, and 2D barcodes with a maximum size of 51 mm x 31 mm(2.0” x 1.25”). All the symbols captured in the field of view are verified individually, and the user simply selects each barcode in turn to see the specific results. Both linear and matrix barcodes can be assessed at the same time. The verification of linear symbols automatically uses ten samples throughout the height of the barcode, so it is faster than using conventional linear barcode verifiers.

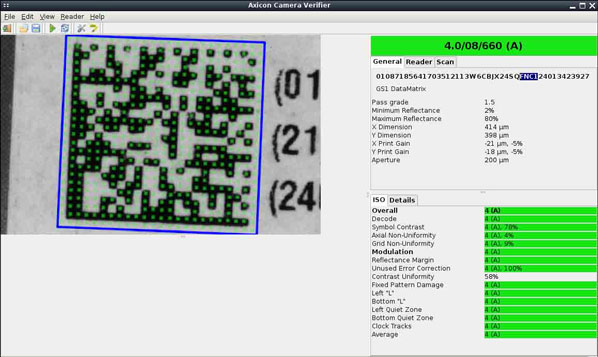

Typical applications Two-dimensional matrix barcodes such as GS1 DataMatrix used on healthcare products, and QR Codes used for marketing purposes to encode product website addresses. Retail point-of-sale barcodes (all the EAN/UPC options) can also be verified.
Traceability features Verification results, including an image of the barcode, can be saved to file.
These files can be used for remote diagnosis and can be printed. The Axicon software provides for automatic saving of all these files if this is required for
ISO 9001 traceability requirements.
Software Specifications |
Symbologies verified |
EAN-8, EAN-13, UPC-A, UPC-E, ITF-14, GS1-128, GS1 DataMatrix, GS1 QR Code, Data Matrix,
QR Code, Code 39, Code 93, Code 128, Codabar, ITF, MSI Plessey. |
Analysis performed on
linear symbologies |
Full ISO/IEC 15416 parameter analysis average bar gain, check digit validation, data length, nominal bar width (x-dimension), symbol structure, quiet zone validation, wide to narrow ratio. |
Analysis performed on
2D symbologies |
Full ISO/IEC 15415 parameter analysis (parameters vary according to the symbology). Nominal bar width (x-dimension), average bar gain. |
Data analysis |
Data content checker (for Application Identifiers with GS1-128, GS1 DataBar, GS1 DataMatrix and GS1 QR Codes), and other symbols via plugins. |
Logging |
Scan saving and loading - stores complete details of scan file data. Allows for remote diagnostics and also for increased traceability. Autosaving of scans for audit trail purposes. |
Multi-language |
English, French, Spanish, Danish, Dutch, Slovenian. Other languages on request |
Hardware Specifications |
Dimensions |
250 x 140 x 130 mm (9.8”x 5.5” x 5.1”) - Maximum image size 51mm x 31mm (2.0” x 1.25”) |
Weight |
1.36 Kg (48 oz) |
Construction |
Aluminium, CCD sensor, LED illumination |
Power consumption |
Current draw 360mA – supplied from USB host. |
Aperture reference
numbers |
05, 06, 08, 10, 16 and 20. The software automatically identifies the symbology and its nominal bar width (x-dimension) and adjusts the aperture size to comply with the symbology specifications and relevant ISO/IEC standard. |
Wavelength of light |
660 nm |
General Information |
Report generation |
A report can be produced via the in-built report generator, and saved or printed. The report generator can create reports in .pdf, .html, .txt, .csv or other formats (Append facilities are available for any format which supports this). The report generator is customisable via scripts and templates so reports can be tailored to individual requirements. |
System requirements |
PC running any currently supported version of Windows - USB 2.0 |
Environmental |
Operating temperature: 10° to 40°C - Storage temperature: -20° to 70°C
Relative humidity: 25% to 80% @ 40°C non-condensing |
Regulatory approvals |
CE certified, RoHS compliant. Meets ISO/IEC 15415, ISO/IEC15416, ISO/IEC 15426-1 and ISO/IEC 15426-2 standards. Has all the features necessary to meet the requirements of 21 CFR part 11. |
Warranty |
Two years parts and labour – return to bench. |
