事捷特Stratix Xaminer Elite 9015,9020條形碼檢測儀

條碼質量的校驗在商務活動中占有越來越重要的地位，Xaminer_Elite系列產品為你提供快速的、精確的條碼校驗服務。Xaminer Elite方便實用，性能價格比高，是你條碼檢測的最佳選擇！

詳細參數

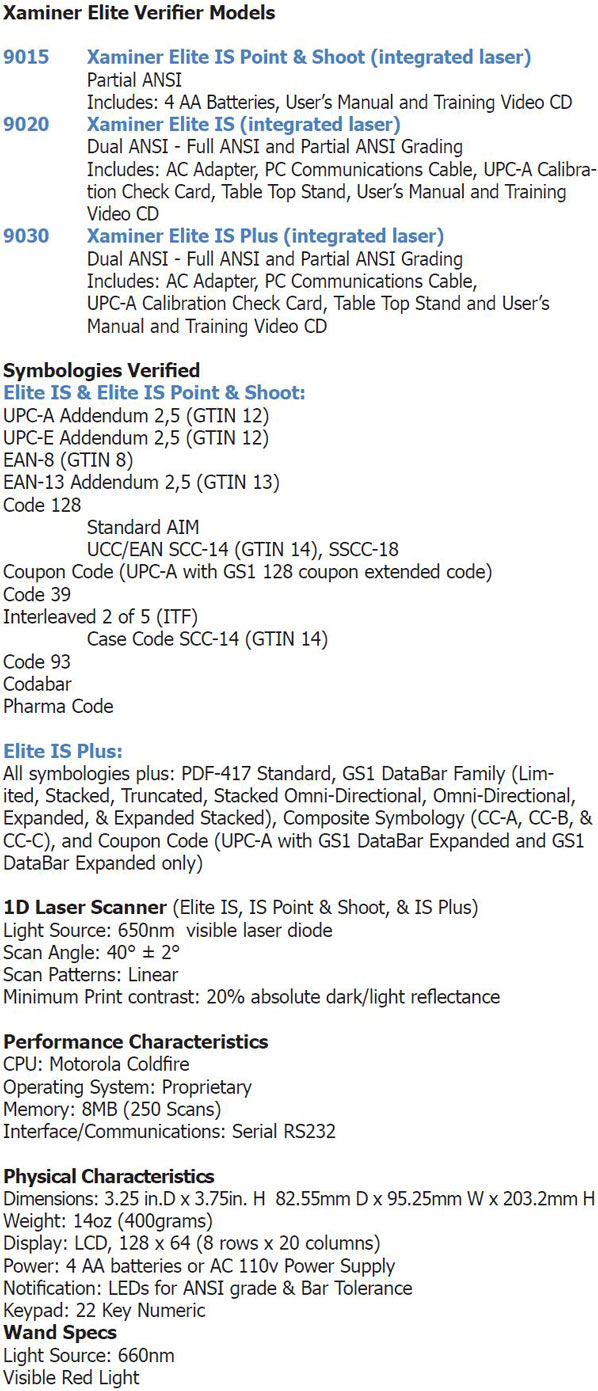

Xaminer Elite Verifier Models
9015 Xaminer Elite IS Point & Shoot (integrated laser)
Partial ANSI
Includes: 4 AA Batteries, User’s Manual and Training Video CD
9020 Xaminer Elite IS (integrated laser)
Dual ANSI - Full ANSI and Partial ANSI Grading
Includes: AC Adapter, PC Communications Cable, UPC-A Calibra- tion Check Card, Table Top Stand, User’s Manual and Training Video CD
9030 Xaminer Elite IS Plus (integrated laser)
Dual ANSI - Full ANSI and Partial ANSI Grading
Includes: AC Adapter, PC Communications Cable,
UPC-A Calibration Check Card, Table Top Stand and User’s Manual and Training Video CD
Symbologies Verified
Elite IS & Elite IS Point & Shoot:
UPC-A Addendum 2,5 (GTIN 12)，UPC-E Addendum 2,5 (GTIN 12)，EAN-8 (GTIN 8)，EAN-13 Addendum 2,5 (GTIN 13)，Code 128 ，Standard AIM ，UCC/EAN SCC-14 (GTIN 14), SSCC-18，Coupon Code (UPC-A with GS1 128 coupon extended code)，Code 39，Interleaved 2 of 5 (ITF) ，Case Code SCC-14 (GTIN 14)，Code 93，Codabar，Pharma Code
Elite IS Plus:
All symbologies plus: PDF-417 Standard, GS1 DataBar Family (Lim-ited, Stacked, Truncated, Stacked Omni-Directional, Omni-Directional, Expanded, & Expanded Stacked), Composite Symbology (CC-A, CC-B, & CC-C), and Coupon Code (UPC-A with GS1 DataBar Expanded and GS1 DataBar Expanded only)
1D Laser Scanner (Elite IS, IS Point & Shoot, & IS Plus)
Light Source: 650nm visible laser diode
Scan Angle: 40° ± 2°
Scan Patterns: Linear
Minimum Print contrast: 20% absolute dark/light reflectance
Performance Characteristics
CPU: Motorola Coldfire
Operating System: Proprietary
Memory: 8MB (250 Scans)
Interface/Communications: Serial RS232
Physical Characteristics
Dimensions: 3.25 in.D x 3.75in. H 82.55mm D x 95.25mm W x 203.2mm H
Weight: 14oz (400grams)
Display: LCD, 128 x 64 (8 rows x 20 columns)
Power: 4 AA batteries or AC 110v Power Supply
Notification: LEDs for ANSI grade & Bar Tolerance
Keypad: 22 Key Numeric
Wand Specs
Light Source: 660nm
Visible Red Light
6,10, and 20 mil apertures
Environmental
Operating Temperature: 14°-122° F
Storage Temperature: -40°-158° F
Relative Humidity: 0% to 85% relative humidity, non-condensing
Sealing Specification: IP42
Software
Stratix Verification Software (SVS) Part # 7309
(single user license)
Accessories
Wands:
6 mil Part# 6
10 mil Part# 10
20 mil Part# 20
Printers:
Dot Matrix Part# 6613
Direct Thermal Part# STXTECDTP
Paper/Ribbon:One-Ply Dot Matrix Printer Paper Part # 6715
Two-Ply Dot Matrix Printer Paper Part # 6716
Dot Matrix Printer Ribbon Part # 6714
One-Ply Direct Thermal Printer Paper Part # 6708
Cases:
Protective Carry Case Part # V6158BCS
Shoulder Harness Part # 10038
Belt Holster Part # 10039
Stands:
Table Top Stand Part # 10046
Power:AC Adapter Part # 10022
PC Upload/Communcation Cable Part # 1313Secondary Power Cable (110 volt) Part # 1316
AA Ni-MH Batteries Part # 10026
Battery Charger Part # 10033(no batteries included, 110 volt, and fast charging)
Regulatory
Safety: UL E236508
Emissions (EMI): FCC Part 15 Subpart B, Class A
Laser Safety: CDRH 21
Warranty
1 year manufacturer’s defects warranty
(parts & labor)
