Status |
Added 03/2014, updated 12/2015 |
Form-factor |

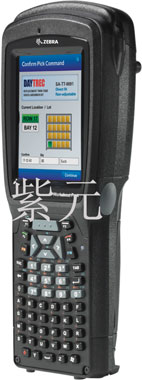

Rugged flashlight-style handheld |
CPU Speed |
Texas Instruments Sitara AM37x ARM Cortex-A8/1.0 GHz |
OS |
Windows Embedded CE 6.0, Windows Embedded Handheld 6.5 |
RAM/ROM |
512MB/4GB Flash ROM |
Card slots |
1 micro SD,; 100-pin expansion interface |
Display type |
Transflective sunlight-readable TFT (240 nits) |
Display size/res |
3.7"/480 x 640 pixel VGA |
Digitizer/pens |
Resistive touch/1 |
Keyboard/keys |
Backlit 46-key alphanumeric (C model), 26-key numeric or full alphanumeric (S model) |
Navigation |
directional control, touch |
Housing |
Plastic/metal |
Operating Temp |
-4° to 122°F (-20° to 50°C) |
Humidity |
5-95% non-condensing |
Sealing |
IP65 |
Shock |
Multiple 6-foot drops to concrete |
Size (WxHxD) |
Model C: 3.95 x 8.8 x 1.65 inces
Model S: 3.95 x 7.9 x 1.65 inches |
Weight |
Model C: 18.6 oz
Model S: 16.2 oz |
Power |
3.7V, 2,760mAH Li-Ion; optional: 3.7V, 4,400mAH Li-Ion |
Interface |
USB, audio |
Scanning |
Optional integrated or as slim pod: 1D standard or extended range laser, 1D or 2D imager |
RFID |
Optional LF, HF or UHF RFID modules |
Camera |
Optional 8mp AF camera with LED illuminator |
Wireless |
Bluetooth Class II, ver 2.0 + EDR, 802.11a/b/g/n; optional UMTS/HSPA+ (data only) with GPS support, optional GPS/WiFi diversity antenna |
