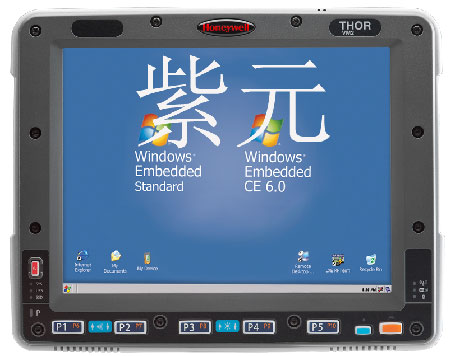

Honeywell Thor VM2車載數據終端

Thor VM2 車載移動終端
Thor VM2基于霍尼韋爾業內領先的VM1車載終端，奠定了公司在車載移動計算領域的領先基礎，是專為充滿挑戰的復雜供應鏈應用而設計的


特征及優點：
Thor VM2 車載移動終端 Features and Benefits
智能底座：像使用筆記本電腦擴展塢底座一樣只要幾秒鐘就能實現主機安裝和拆卸，且具有高工業等級的耐用性和密封性；隨著工作量的變化，動態實現員工和數據終端的輪番工作，可大大提升工作效率，同時支持?jǐn)?shù)據終端從一輛車快速轉移安裝到另一輛車上，只用標準時間的1/6，大大降低了維護成本

現場可更換前面板：將最易磨損和損壞的兩個部件--鍵盤和觸摸屏--設計成為用戶可更換的模塊化配件，減少了投資和維護成本；以備用面板配件取代備用數據終端，進一步降低用戶的系統投資

點火控制：消除了車輛電池用盡造成的維修花費和效率的降低；在叉車熄火后，設備可以設置成自動進入待機或休眠狀態，節省操作時間，同時消除了倉庫管理的顧慮

附件：
Thor VM2 車載移動終端 Accessories
To view and download the Thor VM1 & VM2 accessory catalog click here

VM1052CABLE - USB Y Cable - D9 Male to USB type A plug 6 ft. (host) and USB type A socket 0.5 ft (client). Thor VM1 & VM2 USB port to USB connector for host and USB connector for client
VM1060CABLE - Headset adapter cable, D15 to 4 pin quick disconnect connector. A headset is still required. This cable is required whenever a headset is used with a Thor VM1 & VM2. A four pin quick disconnect extension cord and an LXE headset with the four pin quick disconnect connector are also required. Audio and CANbus share one connector on the Thor VM1 & VM2 dock. This connector can be used for either audio or for CANbus but not both on the same vehicle.
VM1079CABLE - CANbus Y cable - D15 to 9 pin F SAE J1939 (Deutsch) and 9 Pin M SAE J1939 (Deutsch), 6 ft (1.8m). Audio and CANbus share one connector on the Thor VM1 & VM2 dock. This connector can be used for either audio or for CANbus but not both on the same vehicle.

Keyboards
9000160KEYBRD:Windows “Laptop” Style 95 key rugged keyboard with integrated 2 button mouse, USB Interface

Power Cables & Supplies
VX89303PWRSPLY - Power Supply, DC/DC 50-150V trucks, 60W, this power supply is required for installations requiring more than Thor VM1 & VM2 maximum rating of 60 VDC.
VM1301PWRSPLY - AC/DC power supply, FCC Approvals, US cord included. Not for use in Hazardous Locations. Requires Power VM1078CABLE Adapter Cable

VM1302PWRSPLY - AC/DC power supply, (C14 type power cord required), not for use in Hazardous Locations. Requires Power VM1078CABLE

Adapter Cable
VM1078CABLE - Power Cable Adapter for AC power supply, required when using the VM1301PWRSPLY or VM1302PWRSPLY AC/DC power supplies
VM1054CABLE - DC Power Cable (spare), one of these cables is included with each Thor VM1 & VM2 dock
VM1077CABLE - Adapter cable for VX6/VX7 DC power cable, adapts VX6/VX7 power cable to Thor VM1 & VM2 power connector.
9000090CABLE - AC Power Cable, C14 type, Schuko (EUROPEAN) AC AC Power Cable, C14 type, Schuko (EUROPEAN) Power Cable, C14 type, Schuko, AC Power Cable, C14 type, Schuko (EUROPEAN)
9000091CABLE - AC Power Cable, C14 type, Denmark 3-pin
9000092CABLE - AC Power Cable, C14 type, Italy 3-pin
9000093CABLE - AC Power Cable, C14 type, Switzerland 3-pin
9000094CABLE - AC Power Cable, C14 type, British 3-Blade
9000097CABLE - AC Power Cable, C14 type, Australia

VM1376BATTERY - Replacement UPS battery
VX89351PWRSPLY - Screen Blanking Switch Box Universal, the screen blanking switch box enables the screen on the Thor VM1 & VM2 to be automatically blanked when the vehicle is moving.
VX89352PWRSPLY - Screen Blanking Switch Box China Only, the screen blanking switch box enables the screen on the Thor VM1 & VM2 to be automatically blanked when the vehicle is moving.

Antenna Parts & Accessories
VM1277ANTENNA - Remote 802.11 WLAN Dual band Antenna Kit, 14 ft (4M), Kit includes Antenna, Cable and Bracket
VM1278ANTENNA - Mobile WWAN 7-band Antenna Kit, 14 ft (4M), magnetic mount
VM1279ANTENNA - Mobile WWAN 7-band Antenna Kit, 14 ft (4M), adhesive mount, Kit includes Antenna and Cable. Bracket not needed
VM1288ANTENNA - GPS Antenna Kit, 14 ft (4M), adhesive mount, Kit includes Antenna and Cable. Bracket not needed

Mounting Kits
VM1001BRKTKIT - RAM mount kit, round base, short arm 5”(128mm), ball for vehicle dock rear, Kit includes hardware for mounting to the Thor VM1 & VM2 Smart Dock, VM1001VMCRADLE, Kit includes a round base with a D (2.25”/57mm) RAM ball for the vehicle side mounting. Hardware for mounting the base to the vehicle is not included. This mount typically requires drilling holes in the vehicle.
VM1002BRKTKIT - RAM mount kit, round base, medium arm, 8.5” (215mm), ball for vehicle dock rear, Kit includes hardware for mounting to the Thor VM1 & VM2 Smart Dock, VM1001VMCRADLE, Kit includes a round base with a D (2.25”/57mm) RAM ball for the vehicle side mounting. Hardware for mounting the base to the vehicle is not included. This mount typically requires drilling holes in the vehicle.
VM1003BRKTKIT - RAM mount kit, round base, long arm, 13”(330mm), ball for vehicle dock rear, Kit includes hardware for mounting to the Thor VM1 & VM2 Smart Dock, VM1001VMCRADLE, Kit includes a round base with a D (2.25”/57mm) RAM ball for the vehicle side mounting. Hardware for mounting the base to the vehicle is not included. This mount typically requires drilling holes in the vehicle.
VM1004BRKTKIT - RAM mount kit, flat clamp base, short arm 5” (128mm) ball for vehicle dock rear, Kit includes hardware for mounting to the Thor VM1 & VM2 Smart Dock, VM1001VMCRADLE, Kit includes a flat clamp type RAM ball for the vehicle side mounting. These clamp balls attach directly to the roof support arm of most fork lift vehicles without the need for additional mounting hardware.
VM1005BRKTKIT - RAM mount kit, flat clamp base, medium arm 215mm (8.5”), D ball for dock rear, Kit includes hardware for mounting to the Thor VM1 & VM2 Smart Dock, VM1001VMCRADLE, Kit includes a flat clamp type RAM ball for the vehicle side mounting. These clamp balls attach directly to the roof support arm of most fork lift vehicles without the need for additional mounting hardware.
VM1006BRKTKIT - RAM mount kit, flat clamp base, long arm 330mm (13”), D ball for dock rear, Kit includes hardware for mounting to the Thor VM1 & VM2 Smart Dock, VM1001VMCRADLE, Kit includes a flat clamp type RAM ball for the vehicle side mounting. These clamp balls attach directly to the roof support arm of most fork lift vehicles without the need for additional mounting hardware.
VM1007BRKTKIT - RAM mount kit, plate base, short arm, 5” (128mm), ball for vehicle dock rear, Kit includes hardware for mounting to the Thor VM1 & VM2 Smart Dock, VM1001VMCRADLE, Kit includes a metal plate with a D size RAM ball attached. Plate mounting hardware is not included.
VM1008BRKTKIT - RAM mount kit, plate base, medium arm 8.5” (215mm), ball for vehicle dock rear, Kit includes hardware for mounting to the Thor VM1 & VM2 Smart Dock, VM1001VMCRADLE, Kit includes a metal plate with a D size RAM ball attached. Plate mounting hardware is not included.
VM1009BRKTKIT - RAM mount kit, plate base, long arm 13” (330mm), ball for vechile dock rear, Kit includes hardware for mounting to the Thor VM1 & VM2 Smart Dock, VM1001VMCRADLE, Kit includes a metal plate with a D size RAM ball attached. Plate mounting hardware is not included.
VM1011BRACKET - Thor VM1 & VM2 Adapter Bracket for VX6/7 U-Bracket Mount, adapts a Thor VM1 & VM2 to fit a VX1, VX2, VX4, VX5, VX6 or VX7 U-Bracket Mount

VM1010BRKTKIT - Thor VM1 & VM2 U-Bracket mount kit, includes U-Bracket, Adapter bracket and all required hardware

VM2011BRKTKIT RAM mount kit, round base, short arm 5”(128mm), ball for vehicle dock rear, and keyboard mount for 9000160KEYBRD. Hardware for mounting the base to the vehicle is not included. This mount typically requires drilling holes in the vehicle

VM2012BRKTKIT RAM mount kit, round base, medium arm, 8.5” (215mm), ball for vehicle dock rear, and keyboard mount for 9000160KEYBRD. Hardware for mounting the base to the vehicle is not included. This mount typically requires drilling holes in the vehicle

VM2013BRKTKIT RAM mount kit, round base, long arm, 13”(330mm), ball for vehicle dock rear, and keyboard mount for 9000160KEYBRD. Hardware for mounting the base to the vehicle is not included. This mount typically requires drilling holes in the vehicle.

VM2014BRKTKIT RAM mount kit, flat clamp base, short arm 5” (128mm) ball for vehicle dock rear, and keyboard mount for 9000160KEYBRD. The clamp base typically attaches directly to the roof support arm of most fork lift vehicles without the need for additional mounting hardware.

VM2015BRKTKIT RAM mount kit, flat clamp base, medium arm 215mm (8.5”), ball for vehicle dock rear, and keyboard mount for 9000160KEYBRD. The clamp base typically attaches directly to the roof support arm of most fork lift vehicles without the need for additional mounting hardware.

VM2016BRKTKIT RAM mount kit, flat clamp base, long arm 330mm (13”), ball for vehicle dock rear, and keyboard mount for 9000160KEYBRD. The clamp base typically attaches directly to the roof support arm of most fork lift vehicles without the need for additional mounting hardware.

VM2017BRKTKIT RAM mount kit, plate base, short arm, 5” (128mm), ball for vehicle dock rear, and keyboard mount for 9000160KEYBRD. Kit includes a metal plate base with a D size RAM ball attached. Plate mounting hardware is not included. This mount typically requires drilling holes in the vehicle

VM2018BRKTKIT RAM mount kit, plate base, medium arm 8.5” (215mm), ball for vehicle dock rear, and keyboard mount for 9000160KEYBRD. Kit includes a metal plate base with a D size RAM ball attached. Plate mounting hardware is not included. This mount typically requires drilling holes in the vehicle

VM2019BRKTKIT RAM mount kit, plate base, long arm 13” (330mm), ball for vehicle dock rear, and keyboard mount for 9000160KEYBRD. Kit includes a metal plate base with a D size RAM ball attached. Plate mounting hardware is not included. This mount typically requires drilling holes in the vehicle

Mounting Ball Parts
VM1001RAMBALL - Thor VM1 & VM2 dock ball, D-SIZE, with mounting hardware. Recommended for spare docks. These parts are included in all Thor VM1 & VM2 mounting kits.
VX89A030RAMBALL - BALL D-SIZE 2.25, ROUND 3.68 BASE
VX89A031RAMBALL - BALL D-SIZE 2.25, FLAT 2.5 CLAMP BASE
VX89A032RAMBALL - BALL D-SIZE 2.25, 4.75 SQUARE BASE
VX89A033RAMBALL - BALL D-SIZE 2.25, CLAMP BASE FOR 1.25 TO 1.875 PIPE MOUNT
VX89A040RAMBALL - BALL D-SIZE 2.25, CLAMP BASE FOR 2 TO 2.5 PIPE MOUNT

Mounting Arm Parts
VX89A502RAMARM - RAM SHORT ARM, 128mm (5”) for D-SIZE 2.25 balls.
VX89A501RAMARM - RAM MEDIUM ARM, 215mm (8.5”) for D-SIZE 2.25 balls.
VX89A503RAMARM - RAM LONG ARM, 330mm (13”) for D-SIZE 2.25 balls.

Mounting Plate Parts
VX89531PLATE - RAM METAL TABLE STAND
VX89535PLATE - PLATE, TRUCK SIDE FOR 1 D-SIZE 2.25 BALL, NO BALL INCLUDED
9000033PLATE - Backup plate - Set of 2, Hardware included. These two plates can be mounted on each side of the fork lift roof. Various Ram balls can be attached to these plates to avoid having to drill mounting holes or weld the fork lift.

Miscellaneous
VM1510STYLUS - Stylus Kit with tethers, 5 pack, Replacement Front Panels
VM2512LCDFILM Removable touch screen protective film for VM2, anti-glare, 10 pack
VM2530FRONTPNL VM2 Replacement Front Panel, includes touchsreen and keys
VM2W601RECOV VM2 WES 2009 Recovery DVD - English
VM2W602RECOV VM2 WES 2009 Recovery DVD - Traditional Chinese
VM2W603RECOV VM2 WES 2009 Recovery DVD - Simplified Chinese
VM2W604RECOV VM2 WES 2009 Recovery DVD - Japanese
VM2W605RECOV VM2 WES 2009 Recovery DVD - Korean
VM2W606RECOV VM2 WES 2009 Recovery DVD - French
VM2W607RECOV VM2 WES 2009 Recovery DVD - Spanish
VM2W608RECOV VM2 WES 2009 Recovery DVD - German
VM2W609RECOV VM2 WES 2009 Recovery DVD - Thai
VM2276ANTENNA VM2 Dual Band WLAN Whip Antenna - attaches directly to computer
