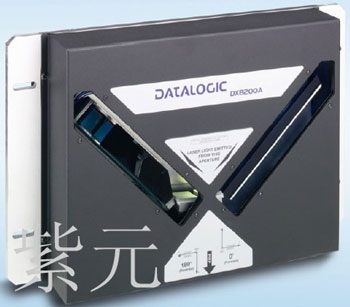

Datalogic DX8200A固定式激光條碼掃描器

產品簡介
DX8200A是一款新型的高性能的交叉線激光掃描器，具有全方位的條碼讀取能力，為運輸和物流行業提供了經濟且易于安裝的單一掃描器解決方案。交叉激光的設計使得采用單個DX8200A，就能完成用兩個DS8100A為許多應用所能做的工作。由于DX8200A內置了預先校準的功能，使其安裝過程更快且更簡單。在連接方式上，除了Ethernet連接外，還提供Profibus和Devicenet模塊，以確保能連接到各種網絡。

特點與優點：
全方位讀��；
ACR -4條碼重組技術；
用于多激光管電子聚焦系統的ASTRA 技術；
PACKTRACK 功能用于盡量減小物體之間的間隔并提升系統的生產效率。
GENIUS 多語言調試軟件，容易進行掃描器的配置/安裝。
內置Ethernet TCP/IP、Profibus和Devicenet連接功能
通過Datalogic WebSentinel 進行遠程診斷監控

應用范圍
該系列產品目前可以滿足以下應用需求:
郵政/快遞包裹的分揀和跟蹤；
自動化倉庫識別系統；
機場行李分揀系統；
貨庫應用；
裝載/卸載系統；

型號
產品序列提供以下型號：
產品訂貨號；產品描述
936201000；DX8200A-3030, VERY HIGH RES, VDC
936201001；DX8200A-3130, VERY HIGH RES,ETH, VDC
936201002；DX8200A-3230, VERY HIGH RES,PBUS, VDC
936201003；DX8200A-3330, VERY HIGH RES,DNET, VDC
936201004；DX8200A-3020, HIGH RES, VDC
936201005；DX8200A-3120, HIGH RES, ETH, VDC
936201006；DX8200A-3220, HIGH RES, PBUS, VDC
936201007；DX8200A-3320, HIGH RES, DNET, VDC
936201008；DX8200A-3010, MEDIUM RES, VDC
936201009；DX8200A-3110, MEDIUM RES, ETH, VDC
936201010；DX8200A-3210, MEDIUM RES, PBUS, VDC
936201011；DX8200A-3310, MEDIUM RES, DNET, VDC
936201016；DX8200A-3031, VERY HIGH RES, VAC
936201017；DX8200A-3131, VERY HIGH RES,ETH, VAC
936201018；DX8200A-3231, VERY HIGH RES,PBUS, VAC
936201019；DX8200A-3331, VERY HIGH RES,DNET, VAC
936201020；DX8200A-3021, HIGH RES, VAC
936201021；DX8200A-3121, HIGH RES, ETH, VAC
936201022；DX8200A-3221, HIGH RES, PBUS, VAC
936201023；DX8200A-3321, HIGH RES, DNET, VAC
936201024；DX8200A-3011, MEDIUM RES, VAC
936201025；DX8200A-3111, MEDIUM RES, ETH, VAC
936201026；DX8200A-3211, MEDIUM RES, PBUS, VAC
936201027；DX8200A-3311, MEDIUM RES, DNET, VAC
936201032；DX8200A-3002, LOW RES, BHS

附件以下附件可用于簡化安裝和優化產品性能：

產品訂貨號；產品描述
93ACC1430；ACS-81 AIR CLEANING SYSTEM
93ACC1792；BK-8200 BRACKET 15 DEG
93A051298；BT-8100 TERMINATOR 8K FAMILY
93ACC1090；BTK-8100 BUS TERMINATOR KIT (5PCS)
93A051287；BTK-8102 DOUBLE TERMINATOR KIT (2 PCS)
93A051286；BTK-8500 IP65 TERMINATOR KIT (2 PCS)
93A051000；CAB-8005 CABLE SCANNER CONTROLLER 5m
93A051010；CAB-8010 CABLE SCANNER CONTROLLER 10m
93ACC1120；CAB-8100 10 WIRES SHIELD D 9.5mm, 50m
93A051020；CAB-8101 CABLE SCANNER SCANNER 1.2m
93A051030；CAB-8102 CABLE SCANNER SCANNER 2.5m
93A051040；CAB-8105 CABLE SCANNER SCANNER 5m
93A051268；CAB-8305 POWER & TERMINATION CABLE 5 M
93A051336；CAB-8310 POWER AND BUS RETURN CABLE 10M
93ACC1758；CAB-8402 NO POWER CABLE FAM 8K 2,5m
93ACC1759；CAB-8405 NO POWER CABLE FAM 8K 5m
93A051283；CAB-8501 IP65 CABLE FAM 8K 1,2m
93A051284；CAB-8502 IP65 CABLE FAM 8K 2,5m
93A051285；CAB-8505 IP65 CABLE FAM 8K 5 m
93A051290；CAB-8605 POWER+2TERM. CABLE FAM 8K 5m
93A051295；CAB-PWO 03 CABLE PWO TO PWO, 3M
93A051338；CAB-SC6003 25P SC6K TO PWO, I/O, 3M
93A051337；CAB-SC6013 25p SC6K TO PWO, PWR/NET, 3m
93A051294；CAB-SC6103 9p CAB SC6000 TO PWR, 3m
93ACC1130；FBK-8100 FAST BRACKET KIT (2PCS)
93ACC1750；FS-1 FRAME SHAPER (8PCS)
93ACC1878；FS-2 SMART FRAME SHAPER (2 PCS)
93A251020；GFC-80 90° DEGREES MIRROR DS8100
93A201103；GFC-800 90° DEG MIRROR CL. DIST. DS8100
93ACC1280；PLL-8000 OPTOCOUPLED PLL DEVICE
93ACC1767；PWO-480 POWER OMNI SYSTEM 480W
93ACC1530；PWR-120-JBOX POWER UNIT 110/230VAC 24V
93ACC1070；PWR-240-JBOX P0WER UNIT 110/230VAC 24V
93ACC1757；UPT-80 DX8200A-DX8200 ADAPTER
93ACC1140；US-8100 BRACKET KIT (10PCS) DS8100
93A051355；CAB-F01 6K/8K FBUS CABLE TO CBX 1M
93A051356；CAB-F02 6K/8K FBUS CABLE TO CBX 2M
93A051357；CAB-F05 6K/8K FBUS CABLE TO CBX 5M
93A051288；CAB-6502 FAM 6K-8K CABLE 2,5m
93A051289；CAB-6505 FAM 6K-8K CABLE 5m
93ACC1600；OEK-1 OPTICAL ENCODER KIT+ CABLE 10m
93ACC1770；OEK-2 OPTICAL ENCODER (CAB 10m+SPRING)
93ACC1791；MEP-593 PHOTOCELL KIT

備注： 以上產品資料可能包含技術上不準確的地方，請聯系我們。Geeren是紫元公司的注冊商標，所有其它商標歸屬各自所有者。
