產品性能參數表 |

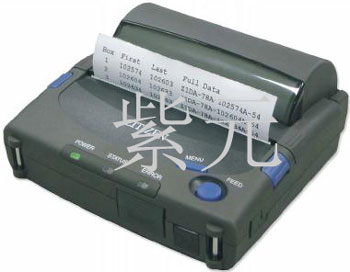

PD-24(IrDA) |
PD-24B(BlueTooth) |
打印方式 |
直熱方式 ，Direct Thermal |
打印精度 |
203dpi, 8點/毫米, 832 dots |
打印速度 |
Thermal paper : 400 dot lines /sec (max. 45 dots/line)
Copy paper : 100 dot lines/sec (max. 45 dots/line) Conditions: room temp. 25 度 / Printing density 0/battery fully charged
1 ～2英寸/秒（2.54～50MM/S） |
打印寬度 |
104mm(4.09 in.) |
最大紙寬 |
112MM |
主板內存 |
64 KB |
處 理 器 |
32位RISC高速處理器 |
一維條碼 |
Code39,Code128,Code93,CodeBar,UPC-A,UPC-E,JAN(EAN)-13,JAN(EAN)-8 |
二維條碼 |
PDF417, QR code |
英文字庫 |
Roman, Sans Serif, Prestige Elite, Courier Script |
字體點陣 |
12H*24H， 18H*24V（10CPI）， 15H*24V（12CPI），12H*24V（15CPI）， 10H*24V（17CPI），09H*24V（20CPI） |
字符集 |
Characters Codes: ASCII 96 Characters, International Characters(16 Languages + 1 Legal),
IBM Graphics Character, Code Page 33 Page, Window Page 5 page |
操作面板 |
User Interface 3 keys (Menu, Feed, Power)
3 LEDs (Power, Status, Error)
Configuration method VuePrintTM menu system |
指令語言 |
ESC/P, Citizen original commands, ESC/POS (barcode commands only) |
鋰電池參數 |
標配鋰電池，Typically 7.2v, 1800 mAh （Max. voltage DC 8.4V) |
AC電源參數 |
DC 8.0V (sold separately) When the Battery pack is mounted on the printer,it can be charged using and AC adapter. |
標配端口 |
IrDA Infrared, RS232C, USB |
Bluetooth，IrDA Infrared, RS232C, USB |
標簽規格
Paper Length Cut sheet paper |
Min. Paper length: 110mm (4.33 in.)
Max. Paper length: 250mm(9.84 in.) |
紙卷規格
Roll paper diameter ,Thermal paper |
紙卷外徑50mm(1.97 in.) ,
紙芯內徑: 8.0~8.5mm(0.32~0.33 in.) |
產品規格 |
147 x 140 x 63 mm ， 5.79 x 5.51 x 2.48 inches， Values include media roll, mounts and projections |
產品重量 |
Typical weight 740 g (printer, battery, full paper roll)
Printer weight 440 g
Battery pack weight 100 g
Full paper roll weight 200 g
AC charger weight 222 g (excluding power cord) |
可選配件 |
RS232 cable
USB cable
Additional battery
Soft carry case, belt clips and straps
External 2-station battery charger
Car adapter / charger |
使用環境 |
Operating Temperature +5°C to +40°C (guaranteed print quality)
Operating Humidity 30% to 90% RH, non-condensing
Storage Temperature -25°C to +60°C |
關健部件 |
官方性能指標 |
Durability |
30Km or more for 1P paper， 2 sheets of copy paper (original +1) 10 km or more |
Headlife |
50 million pulses(at printing rate of 12.5% ,room temp., and density setting of 0) |
